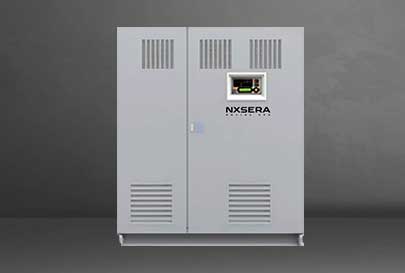

Online UPS System
Online UPS System
Online UPS (Uninterruptible Power Supply) is an advanced power backup solution that provides continuous, high- quality electrical power to connected devices. It is designed to protect sensitive equipment from power interruptions, voltage fluctuations, surges, and other power quality issues.
| Specification | Details |
|---|---|
| Model | NXS 250 Series |
| Rating | 10 KVA to 250 KVA |
| AC Input | 415 + 15%, 3 Phase |
| DC Voltage | 360 / 384 VDC |
| Charging Time | 12 hours for 90% of full capacity |
| Charger Type | CVCC (Constant Current Constant Voltage Type) |
| Frequency | 50Hz + 6% |
| DISPLAY: | Digital LCD Display showing R,Y,B Output Voltage, Output current & frequency, DC Voltage, Battery and load percentage, and all faults |
| INVERTER: | |
| Technology | DSP based, IGBT Switching |
| Output Voltage | 380 / 400 / 415 AC Three Phase |
| Voltage Regulation | +1% |
| Frequency | 50Hz + 6% |
| Waveform | PWM Sine Wave |
| Harmonic Distortion | Less than 3% on linear load |
| Inverter Efficiency | Up to 90% till 30kVA and 93% above 30kVA |
| Power Factor | 0.8 |
| Overload | 110% for 1 min, 150% for 30 sec |
| Crest Factor | 3:01 |
| Phase Displacement | 120 + 1 Deg |
| Audible Noise | Less than 65 DBA |
| INDICATIONS AND ALARMS: | |
| Mains on | LED indication |
| Inverter | LED indication |
| Battery Low | LED indication |
| Fault | LED indication |
| Overload | LED indication |
| PROTECTIONS: | Output overload, Short circuit, Output UV & OV, DC under & overvoltage, Mains under & overvoltage, Mains single phasing |
| GENERAL: | |
| Operating temperature | 40 Deg C |
| Humidity | Max 95%, Non-condensing |
| OPTIONAL: | |
| Communication | SNMP |
| Bypass | Static Switch |
Service Benefits
Functionalities with virtual synerg uniquely the
deliverables through viral
- Computer and Data Centers.
- Process Control in industries like CNC, Laser Printing Application.
- Broadcasting / systems.
- Safety System in Power Plants.
- Medical imaging equipment like MRI, CT, scan, laser, etc.
- Elevator backup and rescue operations.
- Applications requiring constant frequency and constant voltage.
- A DSP advanced technology-based control for power and monitoring.
- IGBT (Insulated Gate Bipolar Transistor) inverter technology.
- Pure sine wave output.
- True online dual conversion design for UPS.
- Wide input range, robust design for harsh environment.
- With isolation transformer at output.
- Engineered design, easy for maintenance, and minimize MTTR.
- CNC-fabricated sheet enclosure for better aesthetics and consistency.
- Three-phase separate control, realizes the control of instantaneous overloading balance, so as to reach 1 00% unbalanced load in three-phase UPS.
- SNMP Intelligent communication optional and dry contact.
- Perfect protection: input/output over/low voltage protection displayed on display with alarm LCD function.
- Excellent load feature, it is completely capable to load from 0- 1 00%.
- Specification can be customized to suit specific requirements.
